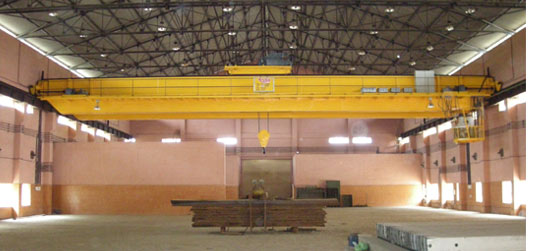

DOUBLE GRIDER EOT CRANE.

Double Grider EOT Cranes are designed and manufactured as per the specific requirements of customers and according to site conditions. Some of the applications of this type cranes are in Power Houses for handling power Generating equipments and its parts, Grabbing Cranes for handling materials like cement, coal, sand etc.

General duty Cranes for workshops, manufacturing units for handling raw materials to finished goods. We also manufacture special duty purpose Crane for handling liquid metal where conditions are very hot and hazardous. Flame proof Cranes are also supplied according to requirement of sites.

Click Here for the Information to be supplied with the enquiry of Double Grider EOT Crane

Capacity in Tonnes	Span in Meters	Head room clearance in mm H	Wheel Base in mm W	Hook approach in mm L.H.L	Hook approach in mm R.H.L	End clearance in mm A1/A2	Wheel load of crane in tonnes (approx)	Total Wt. of crane in tonnes (approx)
5	10 15 20	1600 1600 1700	3800 4000 4200	900 900 900	800 800 800	250 250 250	5.8 6.6 7.2	10.0 12.0 15.0
7.5	10 15 20	1700 1700 1800	3800 4000 4200	950 950 950	850 850 850	250 250 250	8.3 9.3 10.0	12.5 15.5 18.0
10	10 15 20	1800 1800 1900	3800 4000 4200	1000 1000 1000	900 900 900	250 250 270	9.5 10.5 11.5	13.0 16.0 19.5
15	15 20	2200 2300	4000 4400	1000 1000	900 900	275 275	16.7 16.5	21.0 25.0
20	15 20	2400 2500	4200 4400	1100 1100	900 900	300 300	18.4 19.3	24.0 27.5
25	15 20	2600 2800	4400 4600	1150 1150	1000 1000	300 300	21.6 22.8	26.0 30.5
30	15 20	2800 3000	4600 4800	1200 1200	1000 1000	300 300	26.3 28.2	30.0 36.5
40	15 20	3000 3200	4800 5000	1300 1300	1050 1050	325 325	31.9 33.4	35.5 40.0
50	15 20	3200 3500	5000 5200	1400 1400	1100 1100	350 350	37.3 38.9	41.0 47.5
60	15 20	3800 4000	5600 5800	1600 1600	1200 1200	400 400	49.5 52.0	60.0 71.0
80	15 20	4000 4200	5800 6000	1900 1900	1300 1300	450 450	52.0 53.5	78.0 90.0
100	15 20	4200 4500	6000 6200	1900 1900	1400 1400	450 450	59.0 61.0	95.0 110.0
