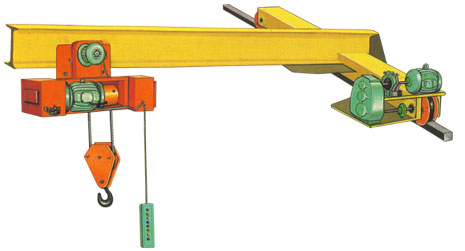

SINGLE GIRDER E.O.T. CRANE

These are moderate capacity workshop cranes manufactured for a capacity upto 20 Tonnes. These type of cranes are normally operated from floor through pendent. This is also suitable where head room (bracket top to ceiling) is less.



Technical Specifications for Single Girder EOT. Crane

Capacity in Tonnes

Span in mm (S)

Head Room Clearance mm (H)

End Clearance in mm A1/A2

Hook approach L1/L2

Wheel Base in mm (W)

Wheel Load in Tannes (approx)

Weight in Tonnes (approx)

1

5000
10000
15000

700
800
850
220
220
220
750
750
750
2000
2500
3000
0.85
1.05
1.30
1.4
2.1
3.1

2

5000
10000
15000
20000

800
900
1000
1200
250
250
250
250
750
750
750
750
2000
2500
3000
4000
1.50
1.65
1.95
2.35
1.71
2.2
3.4
5.0

3

5000
10000
15000
20000

800
900
1000
1250
250
250
250
250
850
850
850
850
2000
2500
3000
4000
2.10
2.25
2.65
3.25
2.2
2.7
4.3
6.7

5

10000
15000
20000

0950
1200
1300
250
250
250
950
950
950
2500
3000
4000
3.45
4.10
4.50
3.3
6.0
7.6

7.5

10000
15000
20000

1000
1250
1400
250
250
250
1000
1000
1000
2500
3000
4000
5.00
5.50
6.00
4.5
6.6
8.5

10

10000
15000
20000

1100
1350
1500
250
250
250
1100
1100
1000
2500
3000
4000

6.55
7.15
7.70

5.2
7.6
9.8

20

10000
15000
20000

1200
1500
1600
250
250
250
1100
1100
1100
2500
3000
4000
9.50
10.00
10.80
6.8
9.7
12.5
