ROCKWELL

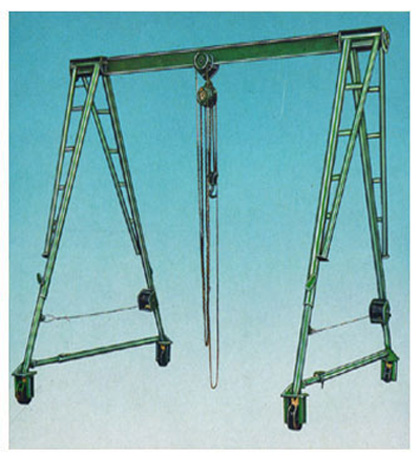

SELF RAISING PORTABLE HEAVY DUTY ADJUSTABLE GANTRY CRANE (Conforming To IS : 3177 of 1977)

Applications :
Used for maintenance, erection, loading and unloading of any heavy work load.

MAIN PARTS :
Girder : (Beam) Heavy duty conforming to IS-226 of 1975.

Pipes : 4 male and 4 female pipes (E.R.W.) conforming to IS: 1161 of 1963.

Wheels : 4 castor wheel assemblies 360 ° swiveling fitted with 2 ball Bearings each wheel are provided for the smooth and light movement of the crane. Each assembly is fitted with locking device.

Winches : Each side of the crane is fitted with winch machine with wire rope for smooth and easy erection of crane.

Request For Quote

Self Erection : Two laymen can erect the complete system with the help of winch machines provided with the crane.

Test : The Gantry Crane is tested on 25% overload.

Warrantee : 12 months warrantee from the date of supply against any manufacturing defect at factory basis.

Dimentional specifications
	Capacity in Tonnes Test Load in Tonnes	1 1.25	2 2.5	3 3.75	5 6.25	7.5 9.4	10 12.5	15 18.7	20 25
A	Overall Max. Ht. in MM	5000	5000	5000	6000	6000	6000	6000	6000
B	Overall Min. Ht. in MM.	3000	3000	4000	4000	5000	5000	5000	5000
C	Clear span in MM	3500	3500	3500	3500	3500	3500	3500	3500
D	Wheel Dia	200	200	200	280	280	280	280	300
E	Head Room with Hand Lifting span in MM	4230	4280	4930	4700	5550	5400	5160	5010
